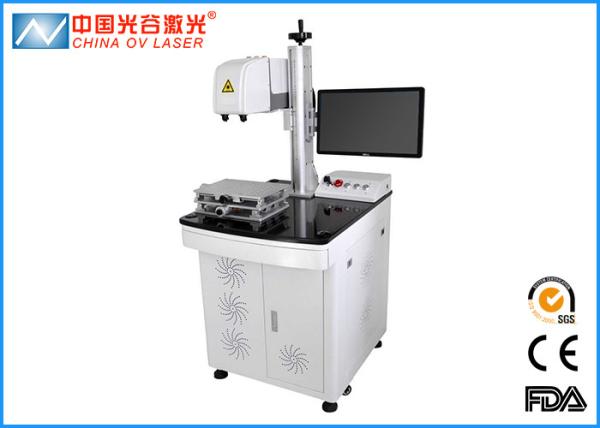

Dynamic 3D Laser Marking Machine Metal Laser Engraver 0.3mard Divergence
| Technical Parameter |
| Laser powe | 20W |
| Laser wavelength | 1064nm ± 10nm |
| Q-frequency | 20KHz-100KHz |
| Divergence | 0.3mard |
| Marking range | 100*100mm/200*200mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 10000mm/s |
| Marking depth | 0-0.5mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2-1.8 |
| Marking format | Graphics, text,barcodes,two-dimensional code,automatically marking the date,batch number,serial number,frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Working voltage | 220V±10%/50Hz/4A |
| Unit power | ＜0.5Kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition | Free of condensed water |
| Laser moudle life | ＞100000hours |
Main Features
1. Compactness,with the unique all built-in integration design,the optical electronic and mechanical components are highly integrated,so that the whole machine weight only 35kg.It can be called the smallest fiber laser marker in the word.In addition,it adopts imported fiber laser,and coupled with all air-cooled design,it need not external cooling devices.
2. High Durability,The laser module has a long service life(greater than 100,000 hours;while thetraditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).
3. Low consumption,Due to the all air cooled design,no consumable materials and free of maintenance,it has a low cost at use.Furthermore,it saves energy with a total power below of 0.5kw.
4. High speed,It applies imported high-speed galvanometer scanning head,which has greatly reduced the latency and increased the marking speed,which is 3 to 10 times of the fist generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material)
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
Applicable Material
All metal , some non-metal material marking such as nylon, ABS, PVC, PES
Applicable Industry
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons
