Potable Fiber Laser Marking machine , Color Laser Engraving Machine
| Model | OV LM-30W(30W/50W) |
| Wavelength | 1060±10nm |
| Fiber power | 20W |
| Beam quality M2 | <2 |
| Laser repetition frequency | 20KHz -100KHz |
| Marking size | Optional(110MM*110MM) |
| Marking Speed | ≤10000mm/s |
| Marking Depth | ≤0.4mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repetition precision | ±0.0015mm |
| Gross power | ≤650W |
| Power Supply | 220V±10%/50Hz/4A |
| Laser Module life | >50000h |
| Cooling way | air cooling |
| System composition | control system, industrial computer, working table |
| Working condition | clean and dust free |
| Power supply | AC220V.50HZ.10Amp.stable voltage |
| Net weight | <80KG |
Application:
Markings on various non-metal, such as plastics, rubber, leather, paper,PVC,ect..
Electronics industry: such as inductance, printed-circuit board, integrated circuit, instrument and control panel,ect.
Daily supplies and clothing industry: such as button,food package, tobacco and alcohol, ect..
Metals of surface oxidated or spray painted, such as bamboo slip, glass, electronic component, building model, crystal model, marble,ect.
1) Long lifespan fiber laser source: 100 000hours
2) Good scan head, with good seal, small volume, and compact.
3) Good scaps controller, USB interfaces swift and stable transmission.
4) Low consumption: <400W, more economized and environmental.
5) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc..
6) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
7) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
8) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
9) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
After-sale service
1. 24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.

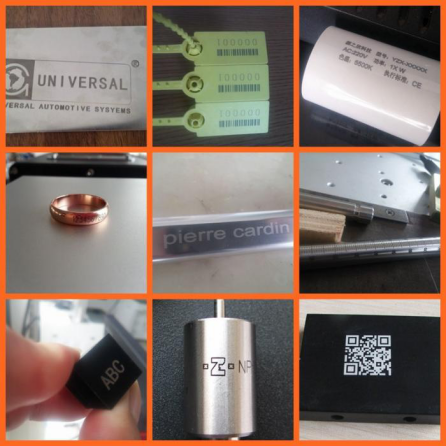

Samples
Product Tags:
|
|
Potable Fiber Laser Marking machine , Color Laser Engraving Machine Images
|
