10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
Portable laser marking machine Application Materials
| Materials | |
| Metal | Stainless Steel, Mild Steel, Brass, Aluminium, Iron, Gold, Silver, etc. |
| Non-metal | ABS, Nylon, PES, PVC, Makrolon, etc |
Portable laser marking machineApplicable Industries
| Application | |
| Electronic Components | Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc. |
| Mechanical Parts | Bearings, Gears, Standard Parts, Motor, etc. |
| Instrument | Panel Board, Nameplates, Precision equipment, etc. |
| Hardware Tools | Knives, Tools, Measuring Tools, Cutting Tools, etc. |
| Automobile Parts | Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc. |
Portable laser marking machine Technical Data
| Product | OV PM-20 Portable Laser Marking Machine |
| Power | 10W /20W / 30W/ 50W |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Controller | JCZ (Software--EzCad) |
| Life-span | 100,000-200,000 hours |
| Cooling Mode | Air cooling--Built-in |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Computer Requested | One set of PC included |
| Dimension (L*W*H) | 750mm*200mm*500mm |
| Package Size | 850mm*300mm*600mm |
| Net Weight | 30KG |
| Optional | Rotary Device, Moving Table, customized Automatic Matching System |
Portable laser marking machine Advantages:
Longer Lifespan
China best Raycus laser source lifespan is more than 100,000 hours. That says, if the machine works 10 hours per day, 360 days a year, the laser source can work more than 27 years.
Light pumping YAG: Hundreds hours; Semi-conductor: 10,000 hours.
Lower Use Cost
Air cooling system is built-in, save space;
The fiber laser source works with no need for consumables at least 10 years;
Higher photoelectric conversion efficiency, save electric cost;
Two years warranty, save maintenance cost
More satisfied after sale service
Training videos are copied in USB drive, packed to send customer;
24 hours technician online, prompt reply;
Remote online support;
Engineers overseas avaliable;
Free marking/engraving samples.
Buying Guides
Laser Marking Machine Buying Tips:
Please let us know following information so we can recommend the most suitable model for you:
1. What material you want to process with? (Stainless steel, Aluminum, Wood, Plastic, Jewelry...)
2. Effective marking size? (75*75mm, 110*110mm, 300*300mm ...)
3. Do you need to mark on cylindrical or round surface?
4. Do you purchase for personal use or distribution?

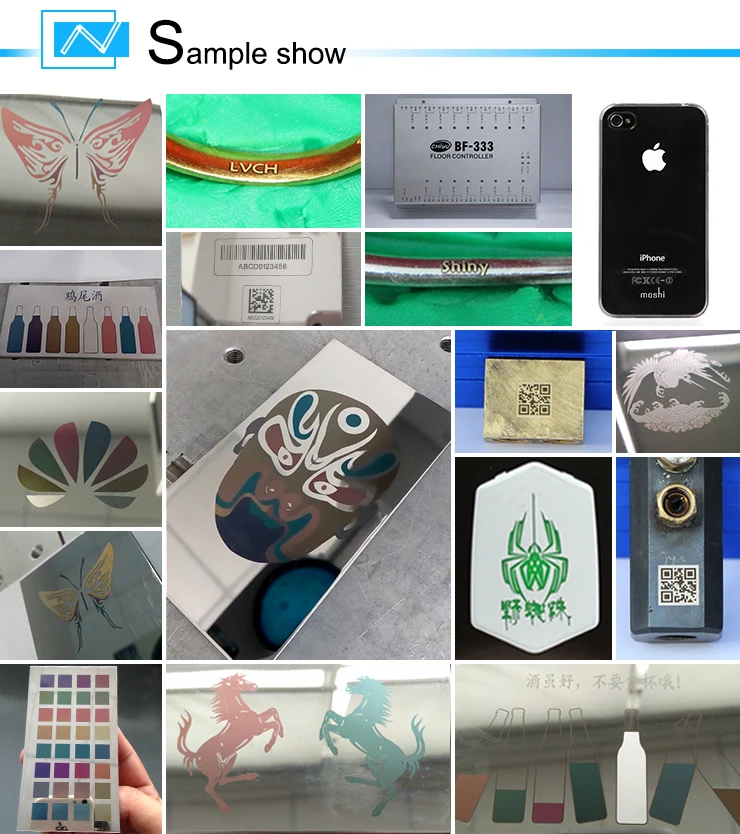

Sampling Show
